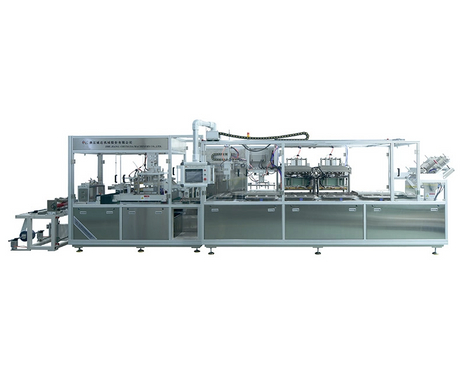

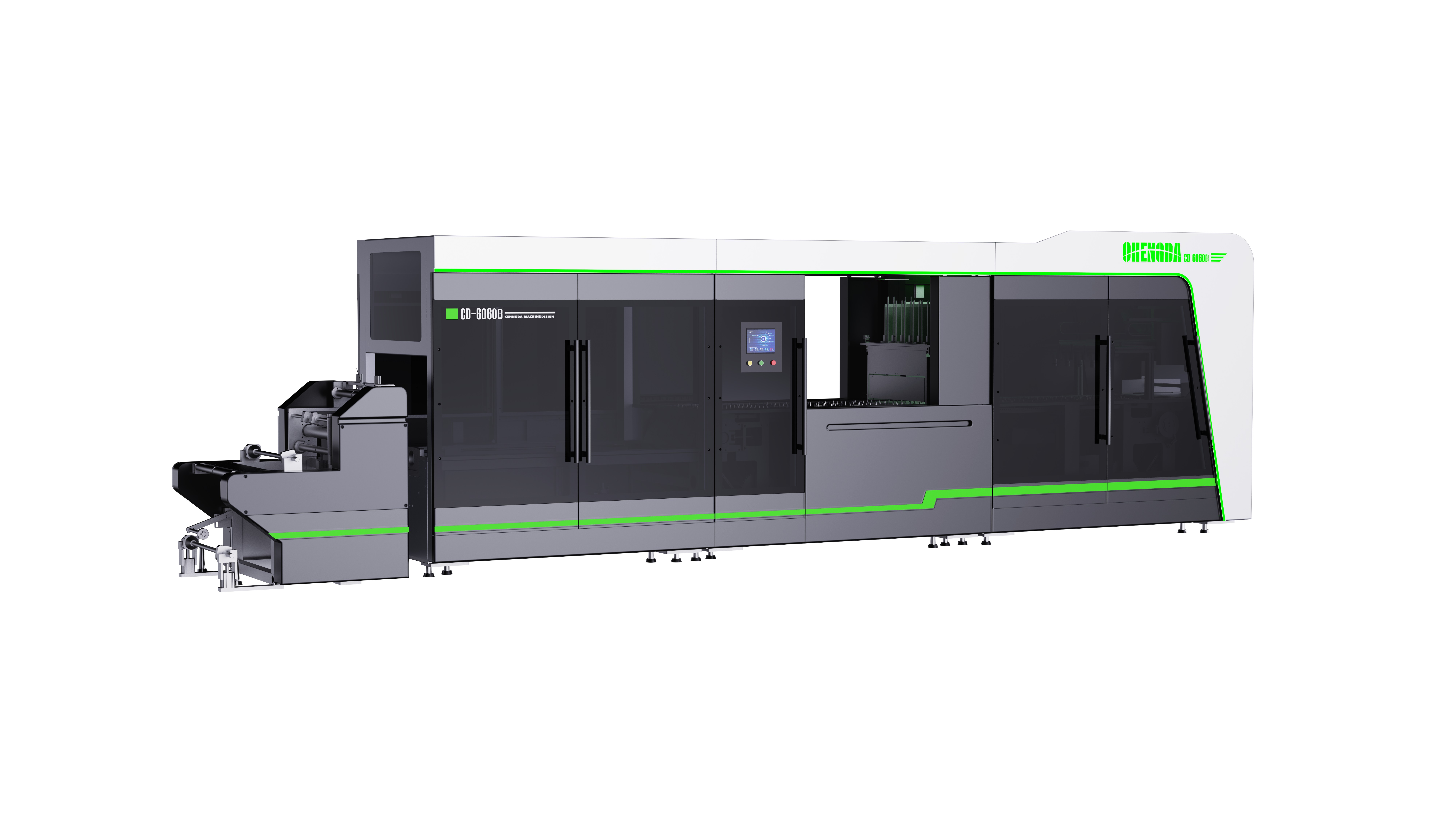

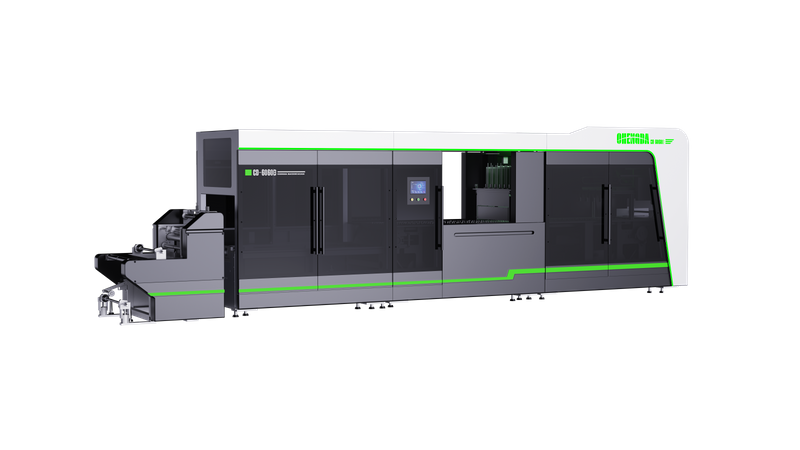

The CD-6060B® Automatic Blister Packing Machine represents the pinnacle of our next-generation packaging technology. Fully upgraded after years of extensive research and multiple generations of technical iterations, this heavy-duty, fully automated system is engineered for continuous, high-volume, and highly stable blister-to-card packaging production.
Designed for versatile manufacturing environments, the CD-6060B® smoothly handles the entire process from plastic roll feeding, heating, and forming to precise card placement, airtight thermal sealing, and high-speed synchronized punching. Whether your facility produces consumer hardware, daily commodities, electronics, or stationery, this machine delivers pristine, retail-ready retail packages that elevate your brand image while dramatically reducing labor costs and material waste.
Technical Parameter | Specification Details |
|---|---|
Model Number | CD-6060B® (Fully Automated Generation) |
Maximum Forming Area | 600 × 240 mm |
Maximum Sealing Area | 600 × 240 mm |
Production Output / Speed | 10 - 15 cycles per minute (cycles/min) |
Compatible Packaging Materials | PVC, PET, PETG, Blister Cardboard with Heat-Seal Coating |
Driving System | Multi-Axis Synchronized Servo Motor Drive |
Heating Mechanism | Energy-Efficient Upper Contact Heating Plate System |
Punching Mechanism | Heavy-Duty Precision Twin-Column Die Structure |
Control System | Intelligent PLC Touchscreen Interface |
Note on Speed | Actual output varies based on material thickness, mold layout, and product loading time. |
Minimizing operational downtime is critical for high-volume manufacturing. The CD-6060B® features an advanced dual-reel material shaft system dedicated to PVC/PET plastic rolls.
Continuous Supply: It holds two rolls of raw material simultaneously, allowing operators to execute fast roll replacement and splicing without shutting down the machine.
Minimized Downtime: This design simplifies the daily workflow, eliminates material loading bottlenecks, and maximizes your daily Overall Equipment Effectiveness (OEE).
Precision is the foundation of high-quality blister packaging.
Uniform Temperature Control: The heating station utilizes an optimized upper contact heating plate structure, ensuring perfectly even heat distribution across the plastic sheets to prevent thinning or structural weak spots.
Synchronized Platform: The heating, forming, and punching stations are integrated on a rigid, single-tier structural platform. Driven by a high-torque servo motor, the entire assembly achieves flawless synchronization, stable mechanical movement, and micron-level accuracy in forming dimensions.
Traditional packaging machines often utilize front-and-rear single-column configurations for the punching station, which causes uneven pressure and rapid tool wear.
Double Guidance Stability: The CD-6060B® introduces an innovative twin-column guiding structure for the cutting and punching die. This evenly distributes mechanical stress across the entire cutting surface.
Low Maintenance Costs: This upgrade drastically extends the operational lifespan of both the upper and lower dies. Additionally, the open-frame design allows for rapid toolless adjustments and effortless disassembly, dropping your routine maintenance costs to an absolute minimum.
Switching between different product lines should not take hours.
Premium Materials: The lower heat-sealing mold assembly (aluminum serving plate) is precision-machined and structurally paired with a high-grade stainless steel cover plate. This makes the overall mold significantly lighter, highly resistant to thermal deformation, and completely rustproof.
Fast Product Changeover: The entire mold setup can be removed and replaced by a single operator without requiring specialized tools, facilitating agile, small-batch, multi-specification manufacturing.
The CD-6060B® is designed to grow alongside your business automation needs. Ample physical workspace is intentionally reserved after the sealing station to accommodate advanced third-party modules:
AI Visual Inspection: Easily integrate industrial cameras to auto-detect empty blisters, misaligned cards, or sealing defects.
Industrial Coding & Printing: Seamlessly install high-speed inkjet, laser, or UV printers for real-time tracking, lot numbers, barcodes, and manufacturing dates.
Synchronous Hanging Hole Punching: Equipped as standard with a high-strength multi-card synchronous hanger hole puncher, capable of punching flawless "Euro-slots" or standard round holes on multiple joined paper cards simultaneously.
Plastic Roll Unwinding: The dual-reel system smoothly feeds the PVC/PET sheet under uniform tension.
Thermal Conditioning (Heating): The upper heating plate softens the sheet at a strictly controlled temperature.
Pneumatic / Mechanical Forming: High-pressure air or mechanical plugs shape the softened plastic into perfect blister cavities.
Product Loading Area: Manual or robotic loading zones where products are accurately placed inside the formed blisters.
Card Placement & Alignment: Coated paperboard cards are accurately fed and placed over the blisters.
Precision Heat Sealing: The stainless-steel reinforced lower mold seals the card and blister together under optimized heat and pressure.
Hole Punching & Die Cutting: The heavy-duty twin-column station punches the retail hanging holes and cuts the finished packages into individual or multi-pack units.
Finished Product Output: Completed packages are discharged via a conveyor belt for final boxing.
Our equipment is a versatile workhorse utilized across a massive spectrum of consumer goods manufacturing sectors:
Hardware & Tools: Drill bits, hex keys, screwis, padlocks, small hand tools, saw blades, and wall anchors.
Electronics & Electrical: AA/AAA/Lithium batteries, button cells, USB flash drives, charging cables, wall switches, and small tech accessories.
Stationery & Office Supplies: Ballpoint pens, permanent markers, glue sticks, correction tapes, erasers, utility knives, and scissor sets.
Household & Personal Care: Toothbrushes, dental floss, cosmetics, lip balms, disposable lighters, air fresheners, and razor cartridges.
Medical & Pharmaceutical: Syringes, medical tubing connectors, and retail-ready wellness products.
Direct Manufacturer Pricing: Eliminate middleman markups. We offer direct-from-factory wholesale pricing, ensuring maximum return on your capital investment.
Comprehensive Customization: Our dedicated engineering team can design custom molds tailored precisely to your unique product CAD drawings and packaging dimensions.
Robust Global Warranty: Every machine is backed by a comprehensive international warranty, complete with lifetime technical remote support and rapid-ship replacement parts.
International Standards Compliance: All mechanical and electrical components conform to rigorous international industrial safety and efficiency certifications.
Q: Can the CD-6060B® handle both PVC and eco-friendly PET/PETG materials?
A: Yes. The machine is engineered with an advanced temperature control and heating profile that can perfectly manage the different thermal requirements of both standard PVC and eco-friendly PET/PETG films without scorching or warping the plastic.
Q: How long does a full mold changeover take when switching product sizes?
A: Thanks to our toolless, ergonomic lower heat-sealing mold design, a complete changeover for a trained operator typically takes less than 20–30 minutes, drastically cutting down down downtime compared to conventional machines.
Q: Do you provide overseas installation and operator training services?
A: Absolutely. We provide comprehensive high-definition video guides, step-by-step digital manuals, and remote video engineering consultations. For large-scale facility setups, onsite deployment by our senior field technicians can be arranged upon request.
